Understanding Fire Resistance: The Role of Steel Coils and Sandwich Panels in Building Safety

As we delve into the world of modern construction, one critical aspect that often gets overlooked until an emergency strikes is fire resistance. Today, we'll explore how elements like high-performance Steel Coils and Sandwich Panels play a crucial role in enhancing building safety. Think about the places where we work and live – electric vehicle battery plants, manufacturing facilities, and data centers. These modern structures rely heavily on materials that not only perform well but also protect us from unforeseen events. Insulated metal panels (IMPs), often constructed from steel coils and a structural core, are a common and effective solution.

Join us as we uncover the science behind fire resistance, focusing on the sophisticated engineering of steel coils and sandwich panels, and how they contribute to creating safer, more resilient buildings.

Key Takeaways

Aspect	Summary
Fundamental Concepts	Fire resistance is distinct from fire reaction. Fire resistance measures a material's ability to contain a fire and prevent its spread (e.g., maintaining structural integrity), while fire reaction describes how a material contributes to the fire itself (e.g., producing smoke or flaming droplets).
Performance Ratings (REI)	In fire resistance, R (Resistance) refers to load-bearing capacity, E (Integrity) to the ability to prevent flames and hot gases from passing through, and I (Insulation) to the ability to block heat transfer. These ratings, followed by a time in minutes (e.g., REI 60), define a panel's containment performance.
Material Behavior (Euroclasses)	The European standard EN 13501-1 classifies materials from A1 (non-combustible) to F (highly flammable). Additional ratings like 's' for smoke production (s1, s2, s3) and 'd' for flaming droplets (d0, d1, d2) provide a complete picture of a panel's reaction to fire. A high rating, such as B-s1,d0, is excellent for sandwich panels.
Core Material Matters	The core of a sandwich panel is critical for fire performance. Mineral wool (RockWool) cores are non-combustible and offer superior fire resistance, while Polyisocyanurate (PIR) foam offers excellent fire-retardant properties and thermal insulation, performing significantly better than traditional Polyurethane (PUR).
Testing and Certification	Rigorous testing ensures panels meet safety standards. Key US tests include ASTM E84 (measures surface flame spread and smoke development), NFPA 285 (evaluates vertical fire propagation on exterior wall assemblies), and FM 4880 (certifies panels for interior use with a Class 1 fire rating).
Broader Benefits	Beyond fire safety, insulated metal panels utilizing steel coils provide significant advantages in energy efficiency due to their high thermal insulation (R-value), leading to lower operational costs. Their durability also ensures a long service life, and using certified fire-resistant materials can lead to lower insurance premiums.

---

Understanding Fire Resistance: The Foundation Provided by Steel Coils and Sandwich Panels

When discussing building safety, the term "fire resistance" is paramount. It refers to a passive fire protection measure; the ability of a structure or its components to withstand a fire for a specific duration, confining it to a single area and preventing its spread. This containment is crucial for allowing occupants to evacuate safely and for emergency services to control the blaze. High-quality steel coils and sandwich panels are engineered specifically to provide this level of protection, forming a fundamental barrier against catastrophe.

Defining Fire Resistance: R, E, and I Values in Sandwich Panels

To truly appreciate the protective qualities of sandwich panels, it's essential to understand the standardized ratings that define their performance in a fire. In Europe and many other regions, the EN 13501-2 standard provides a clear classification system using the letters R, E, and I, followed by a number representing time in minutes. This rating quantifies how long a panel can maintain its structural and protective functions during a fire.

What exactly do R, E, and I mean for your steel coils and sandwich panels?

These three letters represent the primary functions a fire-resistant component must perform to ensure building safety. A certified panel will have a rating like "REI 60," which indicates it successfully meets all three criteria for at least 60 minutes under standardized test conditions.

• R - Resistance (Load-Bearing Capacity): This measures the ability of a structural element, like a load-bearing wall or floor panel, to maintain its structural stability and continue supporting its designated load during a fire without collapsing. For non-load-bearing panels, this criterion is not applicable.
• E - Integrity: This refers to the panel's ability to prevent the passage of flames and hot gases from the fire-exposed side to the unexposed side. Maintaining integrity ensures the fire remains contained within a specific compartment, preventing its rapid spread to other areas of the building.
• I - Insulation: This criterion measures the panel's ability to block heat transfer to the unexposed side. The test fails if the average temperature on the cool side rises by more than 140°C or if any single point increases by more than 180°C above the initial temperature. This is vital for protecting evacuating occupants and preventing the ignition of materials on the other side of the wall.

For example, a panel rated EI 90 is a non-load-bearing element that can prevent fire and hot gas penetration (Integrity) and limit heat transfer (Insulation) for at least 90 minutes. A load-bearing wall with an REI 120 rating will support its load, block flames, and stop heat for a full two hours.

Fire Reaction vs. Fire Resistance: How Steel Coils and Sandwich Panels Behave

While "fire resistance" and "fire reaction" are often used interchangeably, they describe two distinct and equally important aspects of a material's performance in a fire. Understanding this difference is critical for architects, builders, and safety officials.

• Fire Resistance is a system-oriented measurement. It describes how a complete building element (like a wall or floor system made of sandwich panels) acts as a barrier to contain a fully developed fire. It's about preventing the fire from spreading from one compartment to another. The REI ratings discussed earlier are measures of fire resistance.
• Fire Reaction is a material-oriented property. It describes how the material itself responds when exposed to fire, specifically its contribution to the fire's growth and spread in the early stages. It measures characteristics like ignitability, the rate of energy release, flame spread, and the production of smoke and flaming droplets.

A material can have an excellent fire reaction rating but be part of a system with poor fire resistance, and vice versa. For instance, a bare steel beam is non-combustible (excellent fire reaction), but it can lose its strength and collapse quickly in a fire (poor fire resistance without protection). Both properties are therefore crucial for comprehensive fire safety.

European Classification Categories for the Fire Reaction of Sandwich Panels

The European standard EN 13501-1, known as the Euroclass system, classifies the reaction to fire of construction products. It provides a harmonized and consistent way to evaluate and compare materials. The system has seven main classes, from A1 to F.

Euroclass	Description	Performance Level
A1	Non-combustible	No contribution to fire.
A2	Limited Combustibility	Very limited contribution to fire; does not significantly increase fire load or accelerate fire spread.
B	Combustible	Very limited contribution to fire.
C	Combustible	Limited contribution to fire.
D	Combustible	Medium contribution to fire.
E	Combustible	High contribution to fire; can flashover in under 2 minutes.
F	Easily Flammable	No performance determined; highly combustible.

In addition to these main classes, there are two critical subclassifications for products rated from A2 to D:

1. Smoke Production ('s'): This indicates the amount and speed of smoke released during combustion, which is a major life-safety concern as smoke inhalation is a leading cause of fire-related deaths.

   • s1: Very little or no smoke production.
   • s2: Medium/average smoke production.
   • s3: High volume/intensity of smoke production.

2. Flaming Droplets/Particles ('d'): This refers to the production of burning droplets that can fall and spread the fire to other areas or cause burns.

   • d0: No flaming droplets or particles are produced.
   • d1: Slow dripping of burning particles.
   • d2: High/intense dripping of burning particles.

Decoding the Fire Reaction Ratings: What They Mean for Steel Coils and Sandwich Panels

Combining these classifications gives a complete picture of a panel's behavior. A high-performance sandwich panel, for example, might achieve a B-s1,d0 rating. Let's break this down:

• B: The panel makes a very limited contribution to the fire. It is difficult to ignite and will not significantly fuel the flames.
• s1: It produces very little smoke, ensuring that escape routes remain visible for longer and reducing the risk of smoke inhalation.
• d0: It does not produce any burning droplets, preventing the secondary spread of fire from falling molten material.

This classification (B-s1,d0) is considered the highest standard for combustible materials and is often required for surfaces in public buildings, apartment complexes, and schools. Sandwich panels with a non-combustible mineral wool core can achieve an even higher rating of A2-s1,d0, signifying they are virtually non-combustible. Understanding these ratings allows specifiers to choose the right Steel Coils and Sandwich Panels to meet the specific safety requirements of a project.

Enhancing Safety and Durability: The Advantages provided by Steel Coils and Sandwich Panels

While fire resistance is a primary driver for choosing insulated metal panels (IMPs), their benefits extend far beyond this single critical function. The unique composite structure, combining durable steel facings with high-performance insulating cores, delivers a range of advantages that contribute to a building's overall safety, efficiency, and longevity.

Beyond Fire: Energy Efficiency and Longevity through Steel Coils and Sandwich Panels

Energy Efficiency: One of the most significant advantages of using sandwich panels is their exceptional thermal performance. The insulating core—whether PIR foam or mineral wool—provides a continuous barrier against heat transfer. This is measured by the R-value, which indicates a material's capacity to resist heat flow. High-performance IMPs can offer R-values of R-8 per inch or more, significantly outperforming traditional insulation methods like fiberglass batts. This superior insulation minimizes thermal bridging, which is the transfer of heat through structural components. As a result, buildings require less energy for heating and cooling, leading to substantially lower utility bills and a reduced carbon footprint. Since building operations account for a large portion of total emissions, improving energy efficiency is a key step towards more sustainable construction.

Longevity and Durability: The outer layers of sandwich panels are made from robust steel coils, which are coated to resist corrosion, weathering, and UV radiation. This construction makes IMPs incredibly durable and resistant to damage from harsh environmental conditions. With proper installation and minimal maintenance, sandwich panels can have a service life of 40 to 60 years or even longer. Unlike some traditional building materials that can degrade, sag, or lose effectiveness over time, IMPs maintain their structural integrity and insulating properties for decades. This longevity reduces the need for frequent replacements, saving resources and minimizing waste over the building's life cycle.

Sustainability: Steel is one of the most recycled materials in the world, and the steel used in sandwich panels often contains a high percentage of recycled content. At the end of a building's life, the steel facings are 100% recyclable without any loss of quality, contributing to a circular economy. The combination of long-term energy savings, extended lifespan, and the recyclability of its core components makes Steel Coils and Sandwich Panels an environmentally responsible choice for modern construction.

Improved Safety Ratings and Insurance Benefits with Steel Coils and Sandwich Panels

The decision to use high-quality, fire-resistant building materials is not just about meeting code—it's a strategic investment in safety and financial protection. Insurance companies base their premiums on risk assessment; a building constructed with materials that are proven to resist fire, prevent its spread, and maintain structural integrity is inherently less risky.

Constructing a building with certified fire-resistant sandwich panels can lead to significant benefits:

• Lower Insurance Premiums: Buildings made with fireproof or fire-resistant materials, like steel and mineral wool, often cost less to insure. Insurers recognize that these measures proactively mitigate fire hazards, reducing the likelihood of catastrophic damage and large claim payouts. Many insurance providers offer discounts for homes and commercial properties with metal roofing and siding due to their durability and non-combustible nature.

• Improved Building Safety Ratings: Organizations like the Insurance Services Office (ISO) provide ratings based on a community's and a building's fire protection capabilities. Using materials that pass stringent tests, such as those required for FM Approval, demonstrates a high commitment to safety. A favorable safety rating signals a lower risk to insurers, which can directly translate to more competitive insurance rates.

• Enhanced Insurability and Coverage Options: Properties with superior fire safety features are more attractive to insurance carriers. This can result in improved insurability, broader coverage options, and more favorable terms. Insurers are more willing to provide comprehensive coverage for buildings that incorporate robust passive fire protection systems.

• Increased Property Value and Marketability: A building with a documented high level of fire safety is more appealing to potential buyers and tenants. This enhanced safety not only protects occupants but also preserves the asset itself, which can increase the property's market value and make it a more attractive long-term investment.

Choosing panels with certifications from organizations like FM Global, a major worldwide insurer, provides documented proof of performance. FM Approved panels have undergone extensive, large-scale testing to simulate real-world hazards, including fire and extreme weather, giving building owners and insurers confidence in their resilience. This certification confirms the product's ability to prevent property loss, making it a key factor in risk management and financial planning.

Rigorous Testing and Compliance: Ensuring the Fire Resistance of Steel Coils and Sandwich Panels

The claims of fire resistance for any building product are meaningless without validation through standardized, rigorous testing. For insulated metal panels, a series of key tests and certifications provide objective proof of their performance in a fire. These standards, developed by organizations like ASTM International and the National Fire Protection Association (NFPA), are essential for ensuring compliance with building codes and, most importantly, for safeguarding lives and property.

Key Fire Testing Standards for Insulated Metal Panels with Steel Coils and Sandwich Panels

For a building material to be trusted, it must undergo and pass a gauntlet of standardized tests. These evaluations are not arbitrary; they are scientifically designed to simulate real-world fire scenarios and quantify a product's performance. Here are some of the most critical fire testing standards in the United States that apply to insulated metal panels made with steel coils.

ASTM E84: Surface Burning Characteristics of Steel Coils and Sandwich Panels

Often called the "Steiner Tunnel Test," ASTM E84 is a fundamental test for the surface burning behavior of interior finish materials. A 24-foot long by 20-inch wide sample of the material is placed on the ceiling of a controlled tunnel. A flame is ignited at one end, and over a 10-minute period, testers measure how far and how fast the flame spreads across the material's surface, as well as the amount of smoke it produces.

The test yields two critical indices:

• Flame Spread Index (FSI): Compares the rate of flame spread to that of standard materials (red oak has an FSI of 100). To be considered Class A, the highest rating, a material must have an FSI of 25 or less.
• Smoke Developed Index (SDI): Measures the amount of smoke generated compared to a standard. To achieve Class A, the material must have an SDI of 450 or less.

Insulated metal panels with high-quality foam cores and steel facings regularly achieve a Class A rating, demonstrating low flame spread and smoke development, making them suitable for a wide range of interior applications.

NFPA 285: Multi-Story Fire Test for Outer Walls with Steel Coils and Sandwich Panels

The NFPA 285 test is arguably one of the most important and complex evaluations for modern exterior wall assemblies. Its purpose is to determine how a fire might spread on the exterior of a multi-story building. This is not a test of a single component but of an entire wall assembly, including the cladding, weather-resistive barrier, insulation, and interior wallboard.

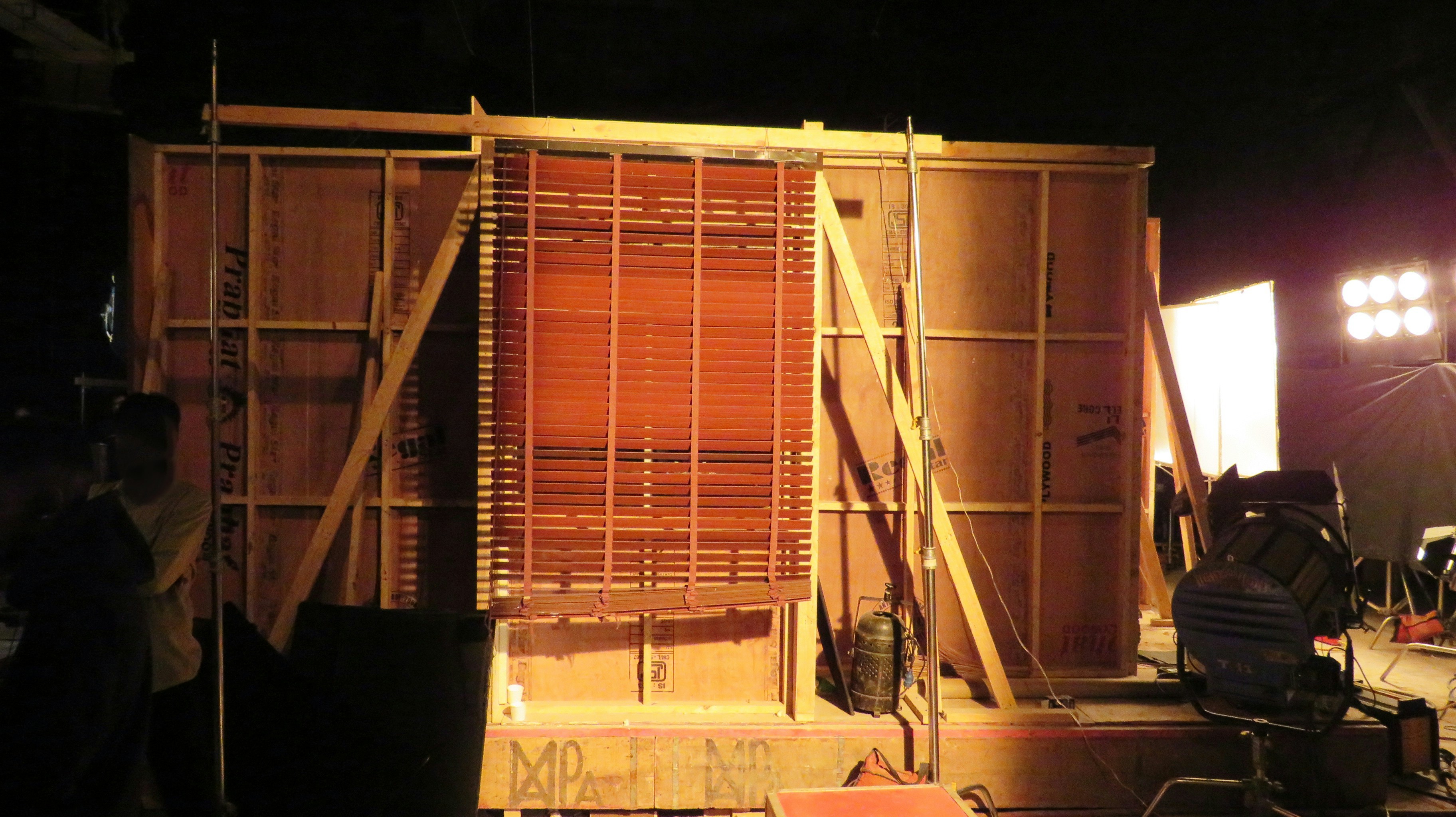

In the test, a two-story mock-up of the wall assembly is constructed with a window opening in the first-floor room. A fire is started inside this room, eventually breaking out of the window and exposing the exterior facade to flames for 30 minutes. To pass, the assembly must meet several strict criteria:

• It must limit both the vertical and lateral spread of flames across the exterior surface.
• It must prevent significant flame propagation within the core of the combustible components of the wall assembly.
• Temperatures at key points on the second story must not exceed specified limits.

Passing the NFPA 285 test is crucial for using IMPs and other combustible components on the exteriors of many non-combustible buildings, especially those over 40 feet in height, as it proves the entire system can effectively resist vertical fire spread.

FM 4880: Class 1 Fire Rating for Interior Applications of Steel Coils and Sandwich Panels

FM Approvals, a division of the commercial property insurer FM Global, has its own set of rigorous testing standards. FM 4880 is the standard for Class 1 fire rating of interior wall and ceiling panels. The "Class 1" rating signifies that a product exhibits limited fire spread and fuel contribution and may not require automatic sprinklers for protection in some scenarios.

The testing for FM 4880 is extensive and can include large-scale corner tests that simulate a fire starting in the corner of a room, which is a worst-case scenario for fire growth. Panels are evaluated on their ability to resist self-propagation of fire. Depending on performance, panels can be approved for use in buildings up to a certain height or with no height restrictions at all. Achieving an FM 4880 Class 1 rating is a strong indicator of superior fire performance, especially for use in sensitive environments like food processing facilities, pharmaceutical labs, or data centers.

Adapting to Stricter Codes: The Role of Steel Coils and Sandwich Panels in Modern Building Regulations

Building and fire codes are not static documents; they are constantly evolving. This evolution is driven by research, technological advancements in materials, and tragic real-world fire events that highlight previously unknown risks. As codes such as the International Building Code (IBC) and standards from the NFPA become more stringent, the construction industry must adapt. Insulated metal panels are a prime example of a modern building material that has evolved to meet—and often exceed—these rigorous demands.

Manufacturers have proactively responded to tightening regulations by:

• Innovating Core Materials: Developing foam formulations with superior fire-retardant properties and increasing the use of non-combustible mineral wool cores.
• Engineering for System Performance: Designing panels and joint systems that perform exceptionally well in full-scale assembly tests like NFPA 285, rather than just focusing on the properties of individual components.
• Pursuing Third-Party Certification: Investing in comprehensive testing and certification from reputable bodies like FM Approvals to provide architects and code officials with undeniable proof of performance.

This continuous cycle of innovation ensures that IMPs remain a viable and safe solution for modern architecture. As architects push the boundaries of design with taller and more complex buildings, the demand for cladding materials that are not only aesthetically pleasing and energy-efficient but also rigorously tested for fire safety will only grow. Companies with a long history in the industry are often at the forefront of adopting new safety standards. For those interested in learning more, you can read About ZhongYuan and their commitment to quality and safety in manufacturing.

The Evolution of Fire Safety: Innovations with Steel Coils and Sandwich Panels

The field of fire safety is one of continuous improvement. As our understanding of fire dynamics has deepened and construction methods have advanced, so too have the materials we use to build. Steel coils and sandwich panels are at the forefront of this evolution, with ongoing innovations in their core composition and design that enhance their protective capabilities and help architects and builders navigate an increasingly complex regulatory landscape.

Specialized Cores: RockWool and PIR Foam in Sandwich Panels for Enhanced Fire Resistance

The "sandwich" in a sandwich panel is the insulating core, and its composition is the single most important factor in determining the panel's fire performance. Manufacturers have made huge strides in developing specialized cores that not only provide excellent thermal insulation but also offer superior resistance to fire.

RockWool (Mineral Wool) Cores: RockWool, a type of mineral wool, is made by melting volcanic rock (basalt) at extremely high temperatures and spinning it into fine fibers. These fibers are then compressed into a dense, insulating core. The key fire safety advantage of RockWool is that it is inherently non-combustible.

• Superior Fire Resistance: Mineral wool can withstand temperatures exceeding 1,000°C (1,800°F) without melting or burning. This allows panels with a RockWool core to achieve fire resistance ratings of up to three hours.
• Excellent Fire Reaction: Panels with a mineral wool core can achieve the highest Euroclass fire reaction ratings, such as A2-s1,d0. This means they are classified as non-combustible, produce virtually no smoke, and do not create flaming droplets.
• Acoustic Insulation: The dense, fibrous structure of RockWool is also highly effective at absorbing sound, providing significant acoustic insulation benefits in addition to fire safety.

These properties make RockWool core panels an ideal choice for buildings with the strictest fire safety requirements, such as high-rise buildings, data centers, hospitals, and buildings used for storing hazardous materials.

PIR (Polyisocyanurate) Foam Cores: PIR is a thermoset plastic produced as a foam. It has become the standard for foam core panels due to its significant fire performance advantages over its predecessor, PUR (polyurethane).

• Enhanced Fire Performance: The chemical structure of PIR is more stable and heat-resistant than that of PUR. When exposed to fire, PIR forms a stable, carbonaceous char layer on its surface. This char layer insulates the foam underneath, slows the spread of flames, and reduces the amount of smoke released.
• Balanced Performance: PIR offers an excellent balance of thermal efficiency, structural strength, and improved fire behavior. While PUR is considered flammable, PIR is fire-retardant and performs significantly better in reaction-to-fire tests.

The development of PIR was a crucial innovation that allowed foam core insulated panels to be safely used in a much wider range of construction applications, providing both high levels of energy efficiency and reliable fire performance.

Navigating Building Codes: How Steel Coils and Sandwich Panels Meet Varying Requirements

Building codes are not uniform; they vary by jurisdiction, building type, height, and occupancy. A low-rise warehouse will have very different fire safety requirements than a multi-story hospital or school. Manufacturers of steel coils and sandwich panels must design products that can be adapted to meet this wide array of codes.

Addressing Concerns in Multi-Story Buildings with Steel Coils and Sandwich Panels

Fire safety concerns are significantly amplified in multi-story buildings. A fire that starts on a lower floor can quickly travel up the building's facade, creating a "chimney effect" that engulfs upper levels. This risk of vertical fire spread is a primary focus for code officials and designers of tall buildings.

To address this, building codes often require exterior wall assemblies on buildings of certain types and heights to pass the rigorous NFPA 285 test. This large-scale test proves that the entire facade system, including the insulated metal panels, weather barriers, and attachments, will not contribute to the rapid vertical spread of fire.

By using NFPA 285-compliant assemblies, architects can confidently specify insulated metal panels for high-rise projects, knowing that they have a tested solution that mitigates one of the greatest fire risks in tall building design. These assemblies ensure that a fire can be contained, allowing more time for occupants to evacuate and for firefighters to respond effectively.

The Ongoing Revisions to NFPA 285 and the Impact on Steel Coils and Sandwich Panels

The world of fire safety testing is dynamic. As new materials are developed and real-world fire incidents provide new data, testing standards are periodically reviewed and updated. The NFPA 285 standard is a key example of this process.

The standard is updated every few years, with the 2023 edition being the latest. Recent updates have focused on increasing the rigor and real-world applicability of the test. For example, language has been clarified to emphasize that it is an assembly test, not a component test, and new requirements for including vertical and horizontal panel joints in specific locations of the test specimen have been added. These joints represent a potential weak point where fire could penetrate behind the panel face, making this a critical addition.

A significant change in the 2023 edition of NFPA 285 is the addition of a new "Annex B." This non-mandatory annex provides guidance for conducting engineering judgments to extend the results from a successfully tested assembly to other similar, but not identical, wall configurations. This is a practical acknowledgment that it is impossible to physically test every single variation of a wall assembly. It aims to create more consistency and transparency in how these judgments are made.

For manufacturers of steel coils and sandwich panels, these revisions mean a continuous commitment to research, development, and re-testing. They must ensure their products not only pass the current standard but also anticipate future changes to maintain compliance and provide architects with safe, reliable, and code-compliant solutions.

---

Frequently Asked Questions (FAQs)

Q1: Are all steel sandwich panels equally fire-resistant?

A: No, they are not. The fire resistance of a sandwich panel is primarily determined by its insulating core material and its thickness. Panels with a non-combustible mineral wool (RockWool) core offer the highest level of fire resistance, often achieving ratings of up to three hours. Panels with a Polyisocyanurate (PIR) foam core have excellent fire-retardant properties and are a significant improvement over older Polyurethane (PUR) cores, but their resistance level is different from mineral wool. It is crucial to check the specific fire rating (e.g., REI 60, EI 120) and reaction-to-fire classification (e.g., A2-s1,d0 or B-s1,d0) for the exact product being considered.

Q2: How do the steel coils themselves contribute to fire safety?

A: The steel coils, which form the outer facings of the sandwich panel, play a critical protective role. First, steel is a non-combustible material, so it will not ignite or contribute fuel to a fire. Second, the steel facings act as a durable barrier, protecting the inner insulating core from initial flame impingement and physical damage. This containment is essential for the entire panel system to perform as designed during a fire, maintaining its integrity and preventing the fire from reaching the core prematurely.

Q3: Can insulated metal panels be used in any type of building?

A: Insulated metal panels are incredibly versatile and are used in a wide range of buildings, including industrial facilities, warehouses, commercial offices, schools, hospitals, and cold storage units. However, the specific type of panel required depends heavily on the building's use, height, and local building codes. For example, multi-story buildings often require wall assemblies that have passed the NFPA 285 test to prevent vertical fire spread. Buildings with very high safety demands, like pharmaceutical labs, may require panels with FM 4880 approval and a non-combustible core. Always consult with architects and fire safety engineers to ensure the chosen panel meets the specific requirements for your project.

Q4: What is the difference between a fire resistance rating (like REI 120) and a fire reaction classification (like B-s1,d0)?

A: This is a critical distinction. Fire resistance (REI) measures an entire assembly's ability to contain a fully developed fire and prevent it from spreading for a certain period (e.g., 120 minutes). It assesses the system's ability to maintain structural integrity (R), stop flames (E), and block heat (I). In contrast, fire reaction (Euroclass A1-F) describes how a material itself contributes to the initial stages of a fire—whether it ignites, how much smoke it produces (s), and if it creates flaming droplets (d). A building needs both: materials with a good reaction to fire to slow initial growth and assemblies with high fire resistance to compartmentalize the fire once it is established.

Q5: How does proper installation affect the fire performance of sandwich panels?

A: Proper installation is absolutely critical to achieving the specified fire performance. The fire ratings of sandwich panels are based on tests of carefully constructed assemblies. Any deviation or error during installation can create weaknesses that compromise the entire system. Key installation details include ensuring tight, properly sealed joints between panels to prevent fire and smoke from penetrating, using the correct type and spacing of fasteners to maintain structural integrity under thermal stress, and correctly installing firestops at penetrations and perimeters. Working with experienced, qualified installers who follow the manufacturer's precise instructions is essential for ensuring the building's fire safety.

---

In conclusion, the careful selection and informed application of materials like steel coils and sandwich panels are paramount for ensuring fire resistance and overall safety in contemporary architecture. These components are not just structural; they are integral to a building's protective capabilities. By understanding the nuances of fire resistance ratings, reaction-to-fire classifications, and the rigorous testing standards that validate their performance, we can build with greater confidence.

As building practices and regulations continue to evolve, particularly in response to the growing risk of events like urban and wildland fires, the demand for highly fire-resistant solutions will only increase. Steel Coils and Sandwich Panels, with their proven performance and continuous innovation, will undoubtedly remain at the forefront of safe and sustainable construction.

Ultimately, investing in high-quality insulated metal panels featuring advanced core technology translates into safer buildings, reduced risks, and peace of mind for occupants and owners alike. We encourage you to share this article to help spread awareness about these critical safety features and to consider these advanced materials in your next project.
