Introduction to Steel Coils and Sandwich Panels

In modern construction and industrial applications, the combination of steel coils and sandwich panels represents one of the most efficient and versatile building material systems available. This comprehensive guide explores the intricate relationship between these two components, from raw material specifications to finished product applications, providing valuable insights for manufacturers, contractors, and project managers alike.

Steel coils serve as the primary raw material for sandwich panel facings, providing structural integrity, weather resistance, and aesthetic appeal. Understanding the properties, processing requirements, and quality considerations of steel coils is essential for producing high-performance sandwich panels that meet industry standards and project specifications. Similarly, knowledge of sandwich panel manufacturing processes and applications helps steel suppliers optimize their products for this growing market segment.

This guide will walk you through the entire value chain, from steel coil production and specifications to sandwich panel manufacturing technologies and end-use applications. Whether you’re involved in material procurement, manufacturing, construction, or project management, this resource will enhance your understanding of these interconnected building components and help you make informed decisions for your specific requirements.

Understanding Steel Coils for Sandwich Panel Production

Steel coils used in sandwich panel manufacturing must meet specific requirements to ensure the finished panels perform as expected in various applications. The selection of appropriate steel coil specifications directly impacts the panel’s structural integrity, durability, and aesthetic qualities.

 Types of Steel Coils Used in Sandwich Panel Manufacturing

Several types of steel coils are commonly used in sandwich panel production, each offering distinct advantages for specific applications:

1. Galvanized Steel Coils (GI) - Coated with a layer of zinc for corrosion resistance - Excellent for general-purpose applications - Cost-effective solution for standard environments - Typical coating weight: 60-275 g/m² (Z60-Z275) - Common thicknesses: 0.3-0.7 mm for sandwich panels

2. Pre-painted Galvanized Steel Coils (PPGI) - Galvanized steel with additional paint coating - Superior aesthetic appearance with wide color options - Enhanced corrosion resistance and UV stability - Available in various finishes (matte, glossy, textured) - Common thicknesses: 0.3-0.7 mm for sandwich panels

3. Galvalume Steel Coils (GL) - Coated with aluminum-zinc alloy (typically 55% aluminum, 43.4% zinc, 1.6% silicon) - Superior corrosion resistance compared to standard galvanized steel - Better heat reflectivity - Excellent for roofing applications - Common thicknesses: 0.3-0.7 mm for sandwich panels

4. Pre-painted Galvalume Steel Coils (PPGL) - Galvalume steel with additional paint coating - Premium option for high-performance applications - Superior durability in harsh environments - Enhanced aesthetic options - Common thicknesses: 0.3-0.7 mm for sandwich panels

5. Stainless Steel Coils - Used for specialized applications requiring maximum corrosion resistance - Food processing facilities, pharmaceutical plants, and clean rooms - Significantly higher cost than other options - Common thicknesses: 0.3-0.5 mm for sandwich panels

Key Steel Coil Specifications for Sandwich Panels

When selecting steel coils for sandwich panel production, several critical specifications must be considered:

1. Thickness (Gauge) The thickness of steel coils for sandwich panels typically ranges from 0.3 mm to 0.7 mm, depending on the application requirements. Thicker facings provide greater structural strength but increase weight and cost.

2. Width Standard widths for steel coils used in sandwich panel production range from 900 mm to 1,250 mm, though custom widths can be specified for particular manufacturing lines.

3. Yield Strength The yield strength of steel used for sandwich panels typically ranges from 220 MPa to 350 MPa. Higher yield strength provides better resistance to deformation but may affect formability.

4. Coating Specifications - Zinc coating weight for galvanized steel (measured in g/m²) - Aluminum-zinc coating weight for Galvalume - Paint coating thickness (typically 15-25 microns for exterior, 5-15 microns for interior) - Paint type (polyester, PVDF, SMP, etc.)

5. Surface Finish Surface finish options include: - Smooth - Embossed (for improved adhesion to core materials) - Profiled (for specific architectural appearances) - Micro-ribbed (for rigidity and aesthetic purposes)

6. Coil Weight and Dimensions - Typical coil inner diameter: 508 mm (20 inches) - Typical coil outer diameter: 1,000-1,800 mm - Coil weight: 3-10 tons, depending on dimensions

Steel Coil Processing Requirements

Before steel coils can be incorporated into sandwich panels, they typically undergo several processing steps:

1. Decoiling and Tension Leveling The steel coil is unwound and passed through a tension leveler to remove coil memory and ensure flatness.

2. Surface Preparation The steel surface may be cleaned, degreased, or chemically treated to ensure proper adhesion to the core material.

3. Slitting (if required) For manufacturing lines that require narrower coil widths, the master coil may be slit into multiple narrower coils.

4. Edge Trimming Edges are often trimmed to ensure consistent width and remove any edge defects that could affect panel quality.

5. Profiling/Roll Forming The flat steel is passed through a series of rollers to create the desired profile for the sandwich panel facing.

6. Quality Inspection Throughout the process, the steel undergoes various quality checks to ensure it meets specifications for thickness, coating adherence, and surface quality.

Sandwich Panel Manufacturing Process

Understanding the sandwich panel manufacturing process is essential for optimizing steel coil specifications and ensuring high-quality finished products. The production method significantly impacts material requirements and final panel performance.

Continuous vs. Discontinuous Manufacturing Methods

Sandwich panel production employs two primary manufacturing technologies, each with distinct advantages and material requirements:

Continuous Production Process: - Higher production capacity (typically 800-2,500 m² per hour) - More efficient for large-scale production - Requires consistent steel coil quality - Better suited for standardized panel designs - Lower labor costs per unit - Higher initial investment

Discontinuous Production Process: - Lower production capacity (typically 200-600 m² per hour) - Greater flexibility for custom panel sizes - Can accommodate more variation in steel coil specifications - Better suited for smaller production runs - Lower initial investment - Higher labor costs per unit

Figure 1: Diagram illustrating the typical process flow of a sandwich panel production line, from steel coil preparation to finished panel packaging.

Types of Steel Coils Used in Sandwich Panel Manufacturing

Several types of steel coils are commonly used in sandwich panel production, each offering distinct advantages for specific applications:

Steel Coil Types Comparison

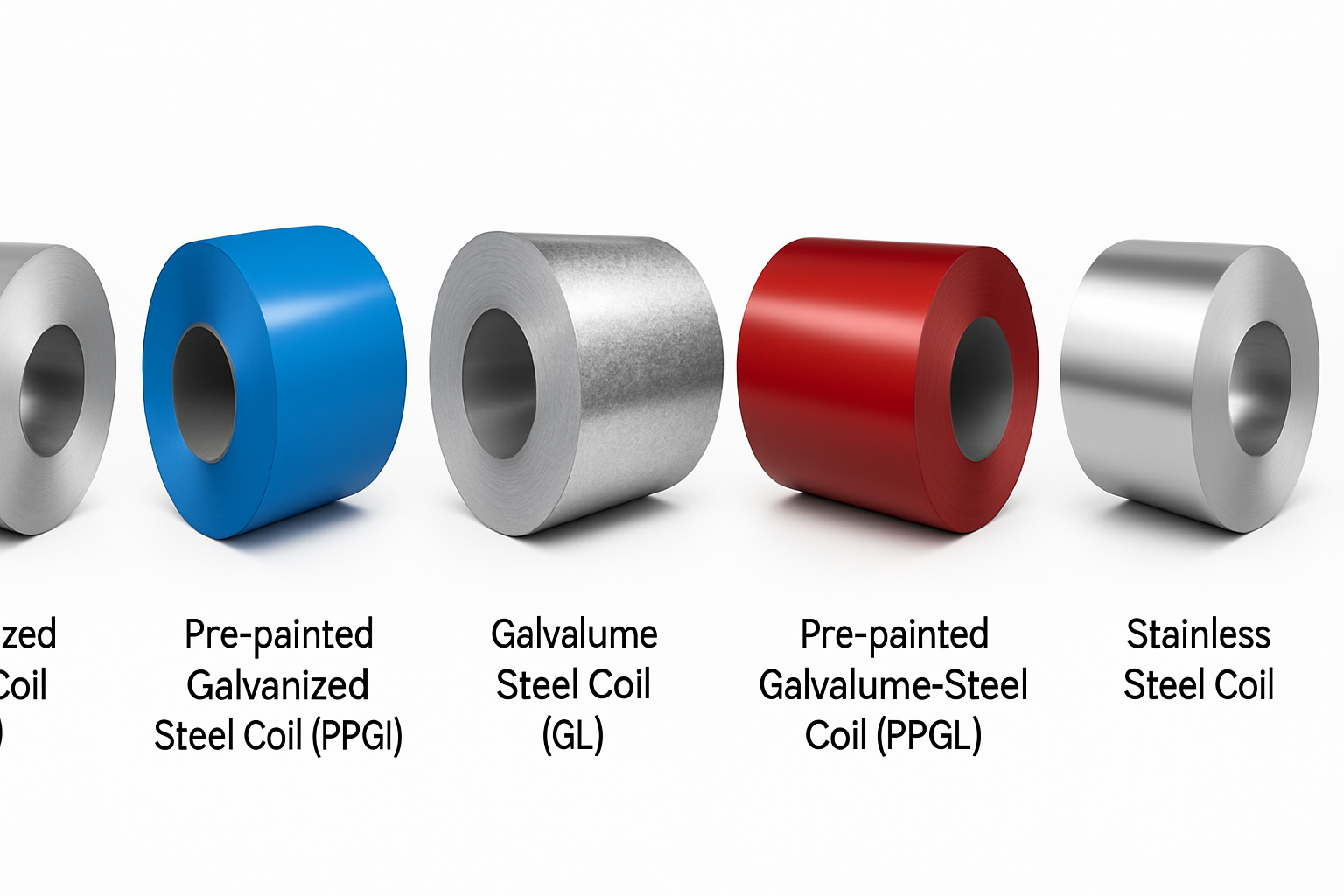

Figure 2: Visual comparison of different steel coil types used in sandwich panel manufacturing, showing their distinctive surface appearances and finishes.

 Integration of Steel Coils in the Production Line

The integration of steel coils into the sandwich panel production process involves several critical steps:

1. Coil Loading and Decoiling - Steel coils are loaded onto decoilers at the beginning of the production line - Hydraulic or motorized decoilers unwind the steel at a controlled rate - Tension control systems maintain consistent tension to prevent warping - Coil joining systems allow for continuous operation when changing coils

2. Surface Preparation - The unwound steel sheet passes through cleaning stations to remove oils and contaminants - Surface treatment may be applied to enhance adhesion to the core material - Quality control systems monitor surface condition and coating integrity

3. Profiling and Forming - The steel sheet passes through roll forming stations to create the desired profile - Different profiles may be used for exterior and interior facings - Profile design affects both aesthetics and structural performance - Precision control ensures consistent dimensions and interlocking features

4. Assembly with Core Material - The profiled steel sheets are aligned with the core material - For PU/PIR panels: liquid chemical components are dispensed between the steel facings - For mineral wool or EPS panels: pre-cut insulation boards are positioned between the facings - Adhesives may be applied to ensure bonding between the steel and core material

5. Pressing and Curing - The assembled layers pass through a continuous press for PU/PIR panels - Temperature and pressure are carefully controlled to ensure proper foam expansion and curing - For mineral wool or EPS panels, adhesives cure under controlled conditions - The continuous panel is formed as the materials bond together

6. Cutting and Finishing - The continuous panel is cut to specified lengths - Edge finishing may be applied - Surface protection film may be added - Quality control checks ensure dimensional accuracy and bond integrity

Core Materials and Their Compatibility with Steel Facings

Different core materials require specific considerations for steel coil selection and processing:

1. Polyurethane (PU) and Polyisocyanurate (PIR) Foam - Requires clean, degreased steel surfaces for optimal adhesion - Chemical reaction between components generates heat, affecting steel expansion - Embossed steel surfaces often preferred for mechanical bonding - Compatible with all common steel coil types - Typical density: 38-42 kg/m³

2. Expanded Polystyrene (EPS) - Requires adhesive bonding to steel facings - Less sensitive to steel surface conditions - Lower cost option with moderate insulation properties - Compatible with all common steel coil types - Typical density: 15-25 kg/m³

3. Mineral Wool - Requires specialized adhesives for bonding to steel - Excellent fire resistance properties - Higher density than foam insulation - May require thicker steel facings for structural integrity - Compatible with all common steel coil types - Typical density: 80-120 kg/m³

4. Glass Wool - Similar to mineral wool but with lower density - Good acoustic properties - Requires careful handling during manufacturing - Compatible with all common steel coil types - Typical density: 60-100 kg/m³

Applications and Performance Requirements

The specific application of sandwich panels dictates the steel coil specifications and core material selection. Understanding these requirements helps optimize material selection and manufacturing processes.

 Industrial and Commercial Building Applications

1. Roof Systems - Typically use PPGI or PPGL steel facings for exterior surfaces - Higher corrosion resistance requirements - Often incorporate specialized profiles for water drainage - May require higher structural strength to support snow loads - Steel thickness: typically 0.5-0.7 mm for exterior facing - Common core materials: PIR, mineral wool

2. Wall Cladding Systems - Emphasis on aesthetic appearance for exterior facings - Wide range of color and finish options - May incorporate architectural profiles - Steel thickness: typically 0.4-0.6 mm - Common core materials: PU, PIR, mineral wool

3. Internal Partitions - Less demanding corrosion resistance requirements - Focus on fire resistance and acoustic properties - Often use simpler profiles - Steel thickness: typically 0.3-0.5 mm - Common core materials: mineral wool, EPS

4. Ceiling Systems - Lightweight construction preferred - May have specific fire rating requirements - Often incorporate specialized connection systems - Steel thickness: typically 0.3-0.5 mm - Common core materials: PIR, mineral wool

Cold Storage and Controlled Environment Applications

1. Cold Storage Facilities - Requires excellent thermal insulation properties - Vapor barrier performance critical - Specialized joint designs to prevent thermal bridging - Steel facings often include food-safe coatings - Steel thickness: typically 0.5-0.6 mm - Common core materials: PIR, PU (higher density)

2. Food Processing Facilities - Hygiene and cleanability are primary concerns - Often use food-grade stainless steel or specialized coatings - Must withstand frequent cleaning with chemicals - Seamless joint systems preferred - Steel thickness: typically 0.4-0.6 mm - Common core materials: PIR, PU

3. Pharmaceutical and Clean Room Environments - Extremely stringent surface quality requirements - Non-particulating surfaces essential - Chemical resistance often required - May need antimicrobial coatings - Steel thickness: typically 0.4-0.6 mm - Common core materials: PIR, PU

4. Agricultural Buildings - High corrosion resistance for animal housing - Chemical resistance for fertilizer storage - Cost-effectiveness often prioritized - Steel thickness: typically 0.4-0.6 mm - Common core materials: PU, EPS

Performance Standards and Testing Requirements

Sandwich panels and their steel facings must meet various performance standards depending on their application:

1. Structural Performance - EN 14509: Self-supporting double skin metal faced insulating panels - ASTM E72: Standard Test Methods of Conducting Strength Tests of Panels for Building Construction - Tests include: bending strength, tensile strength, compressive strength, shear strength

2. Fire Performance - EN 13501: Fire classification of construction products and building elements - ASTM E84: Standard Test Method for Surface Burning Characteristics - Tests include: reaction to fire, fire resistance, flame spread

3. Thermal Performance - ISO 8301: Thermal insulation - Determination of steady-state thermal resistance - ASTM C518: Standard Test Method for Steady-State Thermal Transmission Properties - Tests include: thermal conductivity, thermal resistance (R-value), thermal transmittance (U-value)

4. Acoustic Performance - ISO 10140: Acoustics - Laboratory measurement of sound insulation of building elements - ASTM E90: Standard Test Method for Laboratory Measurement of Airborne Sound Transmission - Tests include: sound reduction index, sound absorption coefficient

5. Air and Water Tightness - EN 12114: Air permeability of building components and building elements - ASTM E331: Standard Test Method for Water Penetration of Exterior Windows, Skylights, Doors - Tests include: air permeability, water tightness, wind resistance

Quality Considerations and Best Practices

Ensuring quality throughout the supply chain from steel coil production to finished sandwich panel is critical for long-term performance and customer satisfaction.

 Steel Coil Quality Control Measures

1. Material Certification and Traceability - Mill test certificates (MTCs) documenting chemical composition and mechanical properties - Coil identification and tracking systems - Batch testing and quality assurance documentation - Compliance with relevant standards (EN 10346, ASTM A653, etc.)

2. Surface and Coating Inspection - Coating thickness measurement using magnetic gauges or laboratory testing - Surface defect detection systems (automated optical inspection) - Adhesion testing for coatings (cross-cut test, bend test) - Corrosion resistance testing (salt spray test, humidity test)

3. Dimensional and Mechanical Testing - Thickness measurement across the width of the coil - Flatness and surface roughness assessment - Yield strength and tensile strength testing - Elongation and formability testing

4. Storage and Handling Practices - Climate-controlled storage to prevent condensation - Proper coil stacking and support to prevent deformation - Protection from contaminants and physical damage - First-in, first-out (FIFO) inventory management

Sandwich Panel Manufacturing Quality Assurance

1. Incoming Material Inspection - Verification of steel coil specifications - Core material property testing - Adhesive quality control - Component compatibility verification

2. In-Process Quality Control - Continuous monitoring of production parameters - Automated dimension checking - Bond strength testing - Visual inspection for defects

3. Finished Product Testing - Dimensional verification - Structural performance testing - Thermal performance testing - Appearance and surface quality assessment

4. Long-term Performance Evaluation - Accelerated aging tests - Cyclic loading tests - Thermal cycling tests - UV exposure tests

Common Issues and Troubleshooting

1. Steel Facing Issues - Delamination from core material - Cause: Inadequate surface preparation, incompatible adhesives - Solution: Improve cleaning processes, verify adhesive compatibility

• Surface defects and scratches
  • Cause: Improper handling, inadequate protection
  • Solution: Implement better handling procedures, use protective films
• Corrosion and coating failure
  • Cause: Inadequate coating thickness, edge corrosion
  • Solution: Specify appropriate coating for environment, implement edge protection
• Oil canning (waviness in flat areas)
  • Cause: Residual stresses in steel, improper tensioning
  • Solution: Improve tension control, consider embossed finishes

2. Core Material Issues - Inconsistent density - Cause: Poor mixing, temperature variations - Solution: Improve process control, enhance mixing technology

• Voids and gaps
  • Cause: Inadequate filling, air entrapment
  • Solution: Optimize dispensing parameters, improve degassing
• Poor adhesion to facings
  • Cause: Incompatible materials, inadequate surface preparation
  • Solution: Verify material compatibility, enhance surface treatment
• Thermal performance degradation
  • Cause: Moisture ingress, aging of materials
  • Solution: Improve edge sealing, select appropriate core materials

3. Manufacturing Process Issues - Dimensional variations - Cause: Inconsistent raw materials, equipment wear - Solution: Enhance measurement systems, implement regular calibration

• Joint and connection problems
  • Cause: Improper profiling, dimensional inaccuracies
  • Solution: Regular tool maintenance, improved quality control
• Cutting and finishing defects
  • Cause: Dull cutting tools, improper handling
  • Solution: Regular tool replacement, improved handling procedures
• Color and appearance variations
  • Cause: Batch-to-batch variations in steel coatings
  • Solution: Implement color management systems, batch control

Future Trends and Innovations

The steel coil and sandwich panel industries continue to evolve with technological advancements and changing market demands.

Advancements in Steel Coil Technology

1. High-Performance Coatings - Self-cleaning surfaces that reduce maintenance - Anti-microbial coatings for healthcare and food processing applications - Super-durable coatings with 30+ year warranties - Cool roof technology with enhanced solar reflectance

2. Lightweight High-Strength Steel - Advanced high-strength steels (AHSS) allowing thinner gauges - Reduced weight without compromising structural integrity - Improved formability for complex profiles - Enhanced energy efficiency in transportation and handling

3. Sustainable Production Methods - Reduced carbon footprint in steel manufacturing - Increased recycled content - Water-based coating systems with lower VOC emissions - Energy-efficient production processes

4. Smart Materials and Functionality - Color-changing coatings that respond to temperature - Integrated sensors for structural health monitoring - Self-healing coating technologies - Enhanced electromagnetic shielding properties

Innovations in Sandwich Panel Manufacturing

1. Advanced Manufacturing Technologies - Fully automated production lines with minimal human intervention - Real-time quality control systems with machine learning - Flexible manufacturing systems for customized panels - Digital twin technology for process optimization

2. Novel Core Materials - Bio-based foam insulation with reduced environmental impact - Aerogel-enhanced cores with superior thermal performance - Phase-change materials for thermal energy storage - Recycled and circular economy-based insulation materials

3. Integrated Building Systems - Sandwich panels with integrated photovoltaic capabilities - Panels with built-in heating and cooling systems - Modular connection systems for rapid assembly - Prefabricated corner and junction solutions

4. Enhanced Performance Characteristics - Ultra-low thermal conductivity panels - Improved fire resistance without harmful flame retardants - Enhanced acoustic performance for noise-sensitive applications - Increased span capabilities for structural applications

Sustainability and Circular Economy Considerations

1. Material Efficiency and Waste Reduction - Optimized steel coil width utilization - Scrap reduction strategies in manufacturing - Recycling of production waste - Design for disassembly and material recovery

2. Life Cycle Assessment and Environmental Impact - Cradle-to-grave analysis of environmental impacts - Environmental Product Declarations (EPDs) - Carbon footprint reduction strategies - Embodied energy considerations in material selection

3. End-of-Life Management - Recyclability of steel facings - Repurposing options for insulation materials - Separation technologies for mixed materials - Take-back programs and producer responsibility

4. Regulatory Compliance and Green Building Standards - Contribution to LEED, BREEAM, and other green building certifications - Compliance with evolving energy efficiency regulations - VOC emissions and indoor air quality considerations - Adaptation to circular economy legislation

Conclusion and Key Takeaways

The relationship between steel coils and sandwich panels represents a critical intersection in modern construction technology. Understanding the specifications, processing requirements, and quality considerations for both components is essential for producing high-performance building systems that meet the demands of various applications.

Key takeaways from this comprehensive guide include:

1. Material Selection is Application-Driven: The specific requirements of the end application should drive the selection of steel coil specifications and core materials.
2. Quality Control Throughout the Supply Chain: Ensuring quality at every stage from steel production to panel manufacturing is essential for long-term performance.
3. Manufacturing Process Impacts Material Requirements: The choice between continuous and discontinuous manufacturing processes influences steel coil specifications and handling requirements.
4. Performance Standards Guide Specifications: Understanding relevant performance standards helps in specifying appropriate materials and manufacturing processes.
5. Innovation Continues to Drive the Industry: Staying informed about advancements in materials and manufacturing technologies helps maintain competitive advantage.

By leveraging the insights provided in this guide, professionals across the supply chain—from steel producers to panel manufacturers to building designers—can make informed decisions that optimize performance, efficiency, and sustainability in their projects.
